This post continues from Part 27. A model with 10 elements is simple. With 50+ elements the question becomes: what does who see, when, in which view? And at what point do sync and draw.io slow down?

When Does a Model Become "Large"?

Practical thresholds:

Element countSymptomSolution

< 30

Everything can be shown in one view

A single main view is sufficient

30–80

One view becomes unreadable — too many shapes

Multiple focused views, scope + include

80–200

sync takes seconds, draw.io stutters

Keep views deliberately small, consider Workspace

> 200

A draw.io page with 200+ shapes is no longer usable

Workspace with separate models (→ Part 16)

Keeping Views Small: scope and include

The most effective measure against large views is consistent scoping.

Bad view:

{
  "views": {
    "everything": {
      "title": "Entire System",
      "include": ["*"]
    }
  }
}

Better: focused views:

{
  "views": {
    "system-context": {
      "title": "System Context",
      "scope": "shop",
      "include": ["shop", "payment", "user"]
    },
    "backend-containers": {
      "title": "Backend Containers",
      "scope": "shop",
      "include": ["shop.api", "shop.db", "shop.cache", "shop.queue"]
    },
    "payment-flow": {
      "title": "Payment Flow",
      "filter-tags": ["payment-path"]
    }
  }
}

Rule of thumb: a view should show at most 15–20 elements. More than that is no longer graspable at a glance.

Using Relationship Lifting as a Feature

Relationship Lifting (→ Part 3) automatically promotes relationships to the next visible parent element. This means: in an abstract view (only shop and payment) all internal relationships between shop. and payment. are automatically presented as a single connection between shop and payment.

So there is no need to define separate relationships for different abstraction levels — lifting handles this automatically.

{
  "relationships": [
    { "from": "shop.checkout-service", "to": "payment.stripe-adapter", "kind": "calls" },
    { "from": "shop.order-service",    "to": "payment.stripe-adapter", "kind": "calls" }
  ]
}

Tags as Dynamic Scoping

Instead of maintaining every view with explicit IDs, tags can be used as a dynamic filter (→ Part 23).

This scales particularly well: when a new element with "tags": ["payment-path"] is added, it automatically appears in all views with "filter-tags": ["payment-path"] — without touching the view definition.

{
  "views": {
    "critical-path": {
      "title": "Critical Payment Path",
      "filter-tags": ["payment-path"]
    },
    "team-backend": {
      "title": "Backend Team View",
      "filter-tags": ["team-backend"],
      "exclude-tags": ["archived"]
    }
  }
}

draw.io Performance: Causes and Countermeasures

draw.io slows down when a page has too many shapes. Concrete measures:

Reduce shapes: * Collapse hierarchical elements (container: true) — draw.io shows only the container shape, not its children * Split views instead of having one large page

Clean up the draw.io file:

# The draw.io file sometimes contains outdated shapes from deleted views
# Sync cleans this up:
bausteinsicht sync
# Then reload draw.io — outdated shapes have been removed

Separate draw.io files per view: Currently Bausteinsicht stores all views as pages in a single .drawio file. With a very large number of views (20+) it can help to split the views into groups — but this is a manual decision.

When Workspace Is the Right Solution

The Workspace feature (Part 16) is the right solution when:

  • The system consists of truly independent subsystems owned by different teams

  • A single JSONC model grows beyond 200 elements

  • Teams want to change their model without coordinating with others

The Workspace allows separate models with cross-references:

{
  "workspace": {
    "models": {
      "shop":     { "path": "shop/architecture.jsonc",     "prefix": "shop" },
      "payment":  { "path": "payment/architecture.jsonc",  "prefix": "pay" },
      "infra":    { "path": "infra/architecture.jsonc",    "prefix": "inf" }
    }
  }
}

Each team maintains its model independently. In the Workspace context, views can combine elements from multiple models.

Decision Guide: When to Use What

SituationRecommendation

One team, one system, < 100 elements

Focused views, tag filters, scope

Multiple teams, one system, 100–200 elements

Ownership conventions, consider Workspace

Multiple teams, multiple independent systems

Workspace with separate models

draw.io sluggish, model still small

Split views, remove unnecessary shapes, rerun sync

validate takes > 5 seconds

Known performance issue — report as a bug

Example Model

The example for this part (larger model with gateway, microservices, event bus) is available at teil_28.jsonc.

Here is what the result looks like in draw.io (bausteinsicht sync):

You can find the draw.io file here: teil_28.drawio

Generated PNG files via bausteinsicht export --image-format png:

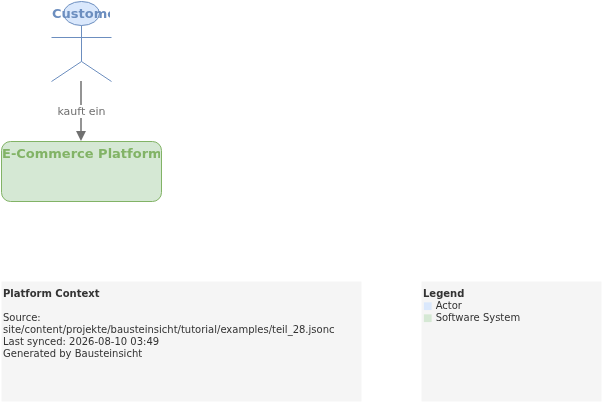

context

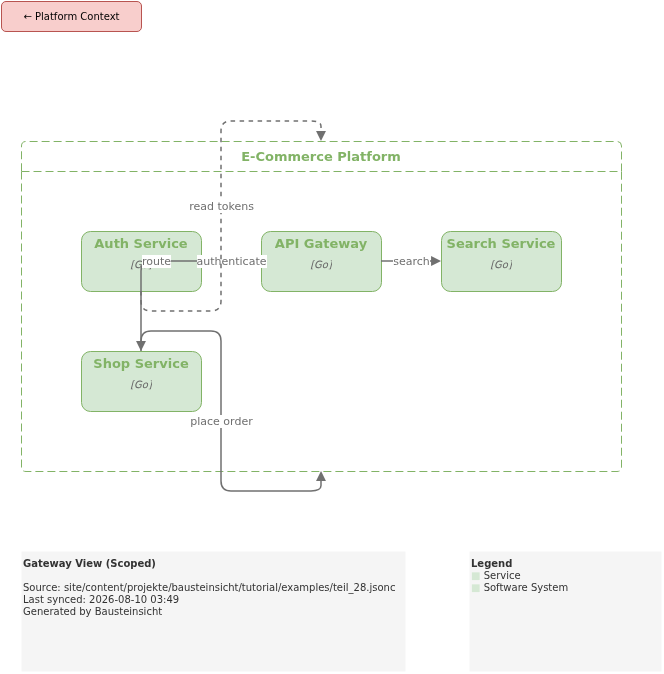

gateway

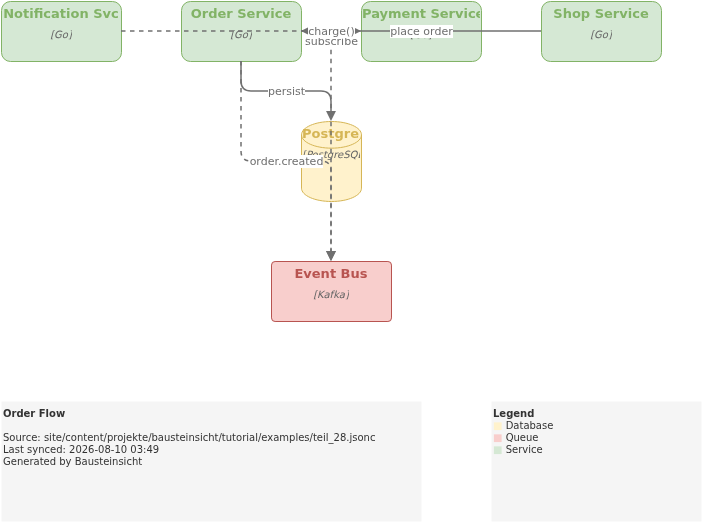

order-flow

Generated PlantUML diagrams via bausteinsicht export-diagram (Order Flow view):

Diagram
Diagram
Diagram

What Comes Next

That Was the Extended Tutorial Series

With Part 28 the Bausteinsicht tutorial series closes — from the project introduction in Part 1 through to performance and scaling in Part 28.

The most important entry points for quick reference:

Official documentation: User Manual · Tutorial on doctoolchain.org
