This post continues from the twentieth part. Architecture migrations are complex: you need to understand where you currently stand (As-Is) and where you want to go (To-Be). Bausteinsicht supports this directly in the model — as two parallel snapshots.

The Concept

architecture.jsonc can contain two optional sections alongside the main model:

  • asIs — current state (as-is architecture)

  • toBe — target state (to-be architecture)

Both have the same structure: elements and relationships.

{
  "model": { ... },

  "asIs": {
    "elements": {
      "shop-monolith": {
        "kind": "system",
        "title": "Shop Monolith",
        "technology": "Java/Spring"
      },
      "shop-db": {
        "kind": "database",
        "title": "Monolith DB",
        "technology": "MySQL"
      }
    },
    "relationships": [
      { "from": "shop-monolith", "to": "shop-db", "label": "reads/writes" }
    ]
  },

  "toBe": {
    "elements": {
      "shop-api": {
        "kind": "service",
        "title": "Shop API",
        "technology": "Go"
      },
      "auth-service": {
        "kind": "service",
        "title": "Auth Service",
        "technology": "Go"
      },
      "payment-service": {
        "kind": "service",
        "title": "Payment Service",
        "technology": "Rust"
      },
      "shop-db": {
        "kind": "database",
        "title": "Shop DB",
        "technology": "PostgreSQL"
      }
    },
    "relationships": [
      { "from": "shop-api",      "to": "auth-service",     "label": "authenticate" },
      { "from": "shop-api",      "to": "payment-service",  "label": "charge" },
      { "from": "shop-api",      "to": "shop-db",          "label": "reads/writes" },
      { "from": "payment-service","to": "shop-db",         "label": "audit" }
    ]
  }
}

bausteinsicht diff

diff compares asIs with toBe and outputs the differences:

bausteinsicht diff --model architecture.jsonc

Output:

Architecture Diff
=================

Added (3):
  + shop-api            [service ] "Shop API"
  + auth-service        [service ] "Auth Service"
  + payment-service     [service ] "Rust"

Removed (1):
  - shop-monolith       [system  ] "Shop Monolith"

Changed (1):
  ~ shop-db             [database]
      technology: "MySQL" → "PostgreSQL"

Added Relationships (3):
  + shop-api → auth-service (authenticate)
  + shop-api → payment-service (charge)
  + payment-service → shop-db (audit)

Removed Relationships (1):
  - shop-monolith → shop-db (reads/writes)

JSON Output

bausteinsicht diff --model architecture.jsonc --format json

Returns a structured DiffResult object with summary (counts) and an elements array containing ChangeAdded, ChangeRemoved, and ChangeChanged entries.

Comparing a Single View

bausteinsicht diff --model architecture.jsonc --view shop-overview

Filters the diff to elements that are visible in the specified view.

Difference from snapshot diff

Aspectbausteinsicht diffbausteinsicht snapshot diff

Compares

asIs vs. toBe in the same model

Two snapshots at different points in time

Purpose

Migration planning (defining the target)

Retrospective (what has changed?)

Data storage

In the model itself

In .bausteinsicht-snapshots/

Workflow: Migration Planning

  1. Populate asIs with the current system state

  2. Populate toBe with the target architecture

  3. bausteinsicht diff — shows exactly which steps are required

  4. Document the result in a PR description or ADR

  5. After the migration: update asIs to match toBe, clear toBe or define the next migration stage

# Diff for PR description
bausteinsicht diff --model architecture.jsonc --format json \
  | jq '{ added: .summary.added_elements, removed: .summary.removed_elements, changed: .summary.changed_elements }'
asIs and toBe can also be populated incrementally — for iterative migrations with multiple intermediate states. Update asIs between sprints whenever elements have actually been migrated.

Example Model

The example for this part (monolith → microservices migration with asIs/toBe sections) is located at teil_21.jsonc.

This is what the result looks like in draw.io (bausteinsicht sync):

The draw.io file for this can be found here: teil_21.drawio

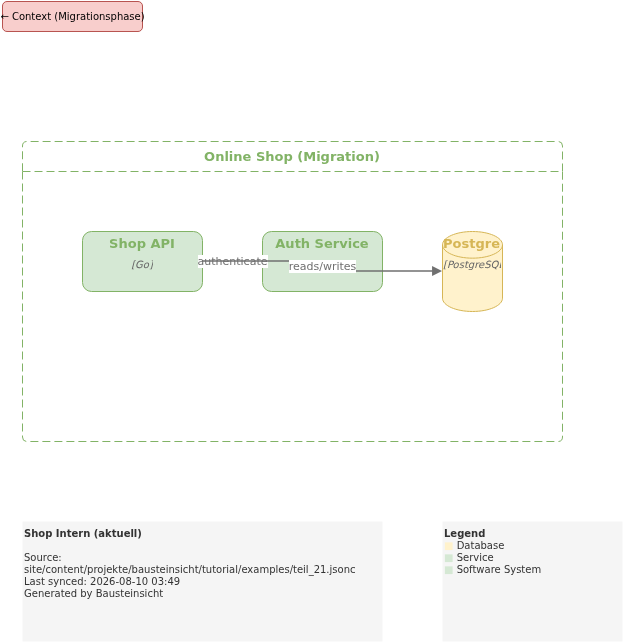

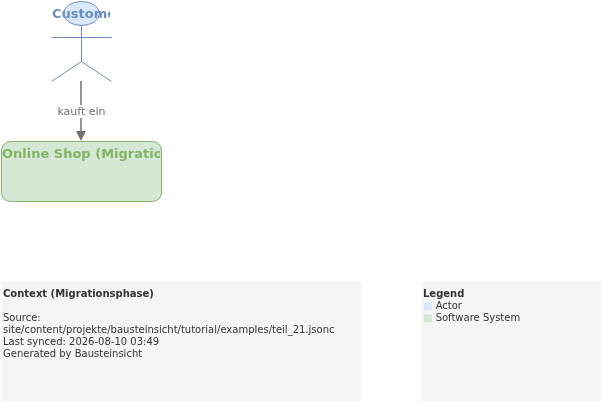

Generated PNG files via bausteinsicht export --image-format png:

containers
context

Generated PlantUML diagrams via bausteinsicht export-diagram (current migration phase):

Diagram
Diagram
